Problem Set 2

part I due by 10 p.m. on Monday, June 30, 2025
part II due by 10 p.m. on Tuesday, July 1, 2025

Preliminaries

In your work on this assignment, make sure to abide by the policies on academic conduct.

If you have questions while working on this assignment, please come to office hours, post them on Ed Discussion, or email cscis111-staff@lists.fas.harvard.edu

Part I

45 points total

Creating the necessary folder

1. If you haven’t already created a folder named s111 for your work in this course, follow these instructions to do so.

2. Then create a subfolder called ps2 within your s111 folder, and put all of the files for this assignment in that folder.

Creating the necessary file

The problems from Part I will all be completed in a single PDF file. To create it, you should do the following:

1. Access the template that we have created by clicking on this link and signing into your Google account as needed.

2. When asked, click on the Make a copy button, which will save a copy of the template file to your Google Drive.

3. Select File->Rename, and change the name of the file to ps2_partI.

4. Add your work for the problems from Part I to this file.

5. Once you have completed all of these problems, choose File->Download->PDF document, and save the PDF file on your machine. The resulting PDF file (ps2_partI.pdf) is the one that you will submit. See the submission guidelines at the end of Part I.

Problem 1: Evaluating expressions

6 points total; 0.75 points each part; individual-only

Assume that the following variable declarations have already been executed:

int f = 15;
int g = 2;
double h = 2.0;
double i = 2;
double j = 10.0;

Given the statements above, determine the value of each of the following expressions. Make sure that your answers clearly indicate the type of each value. In particular, floating-point values should have a decimal and strings should be surrounded by double quotes.

1.     f + g
2.     f + "g" + 1
3.     f + 1 + "g"
4.     f / g
5.     f / h
6.     f / i
7.     (int)j / f * f
8.     (int)(j / f) * f

Problem 2: Expressions and assignment statements

7 points total; individual-only

Assume that num and val are variables of type int that have already been declared and assigned initial values.

In this problem, you will write assignment statements using num and val. These statements must use the standard assignment operator (=). They should not use shortcut assignment operators like +=.

1. (1 point) Write a single assignment statement that assigns to val a value that is 5 less than the value of num.

2. (1 point) Write a single assignment statement that cuts the value of num in half.

3. (1 point) Assume that val is a two-digit number (i.e., a number between 10 and 99). Write a single assignment statement that assigns to num the 10’s digit of the value of val. For example, if val has a value of 71, your assignment statement should end up assigning a value of 7 to num. Your statement must use a single arithmetic operator, and it must work for an an arbitrary value of val between 10 and 99.

4. (2 points) If the value of val can have an arbitrary number of digits, we need to use a different approach when determining its 10’s digit. Write a single assignment statement that assigns to num the 10’s digit of the value of val, regardless of how many digits the value has. For example, if val has a value of 12345, your assignment statement should end up assigning a value of 4 to num; if val has a value of 5, your statement should end up assigning a value of 0.

   Hint: the right-hand side of the assignment statement should be expressed using two mathematical operators.

5. (2 points) What are the values of num and val after the following assignment statements have been executed?

   val = 9;
   val = val * 2;
   num = val - 4;
   val = 11;


Problem 3: Binary numbers

6 points total; 3 points each part; individual-only

1. Convert each of the following binary numbers into its equivalent decimal number. Show your work.

   • 1101
   • 100100

2. Convert each of the following decimal numbers into its equivalent binary number. Show your work.

   • 29
   • 52

Problem 4: Definite loops

6 points total; 3 points each part; individual-only

1. In ps2_partI, we have included the following partial code fragment:

   for (____________; ____________; ____________) {
       System.out.println("I feel loopy!");
   }


   Fill in the blanks to create a loop that repeats the message “I feel loopy!” 12 times. Use one of of the two templates for simple repetition that we discussed in lecture.

2. Consider the following code fragment:

   for (int i = 5; i > 30; i++) {
       System.out.println(i);
   }


   This code is supposed to print the multiples of 5 from 5 to 30 on separate lines, as follows:

   5
   10
   15
   20
   25
   30


   However, it currently fails to do so.

   We have included the original code fragment in ps2_partI. Make whatever changes are needed to obtain the correct output. The corrected version should still consist of a three-line for loop — i.e., you should not add any lines.

Problem 5: Nested for loops

6 points total; 3 points each part; individual-only

1. Consider the following code fragment:

   for (int i = 2; i <= 4; i++) {
       for (int j = 1; j < 4; j++) {
           System.out.println(i * j);
       }
   }


   In section 5-1 of ps2_partI, we have provided a table that you should use to trace through the execution of these loops. We have given you the first two rows; complete the table with your trace of the remaining iterations of the loops. You may not need all of the rows.

2. Consider the following code fragment:

   for (int i = 0; i < 3; i++) {
       for (int j = 2; j >= 0; j--) {
           System.out.println(i + " " + j);
       }
       System.out.println("--");
   }


   Modify this fragment to make it produce the following output:

   0 0
   --
   1 1
   1 0
   --
   2 2
   2 1
   2 0
   --
   3 3
   3 2
   3 1
   3 0
   --


   We have included the original code fragment in ps2_partI. Make whatever changes are needed to obtain the correct output. The corrected version should still consist of six lines, with one three-line for loop nested in another for loop.

Problem 6: Using nested for loops to produce a pattern

8 points total; individual-only

We will cover the material needed for this problem on Friday, 6/24.

Consider the following pattern:

!!---
!!!-----
!!!!-------

1. (2 points) To deduce the formulas needed for this pattern, begin by completing the table provided in ps2_partI. We have given you the first row. Complete the remaining rows using the same approach that we took in the DrawTorch case study in the lecture notes.

2. (3 points) Use the table to determine formulas for:

   • the number of exclamations as a function of the line number. Use the variable line in your formula.
   • the number of hyphens as a function of the line number. Use the variable line in your formula.

3. (3 points) Write a Java code fragment that uses nested for loops to produce the pattern. For full credit, each print/println statement should print at most one character. You do not need to create a program for this problem. Simply include the code fragment in your ps2_partI file.

Problem 7: Variable scope

6 points total; 1 pt. each part; individual-only

Consider the following program, which includes a number of incomplete println statements:

public class ScopeThisOut {
    public static void doSomething() {
        int a = 5;
        System.out.println(________);            // first println

        int b = 2;
        for (int i = 1; i <= 5; i++) {
            System.out.println(________);        // second println
            int c = 2;
            for (int j = 0; j < 3; j++) {
                System.out.println(________);    // third println
                int d = 4;
            }
        }

        System.out.println(________);            // fourth println
    }

    public static void main(String[] args) {
        int x = 5;

        System.out.println(________);            // fifth println

        int y = 2;
        doSomething();

        System.out.println(________);            // sixth println
    }
}

The program includes a number of int variables: a,b,c,d, i, j, x and y. Given the rules that we have learned about variable scope:

1. Which of these variables could be printed by the first println statement?
2. Which of them could be printed by the second println statement?
3. Which of them could be printed by the third println statement?
4. Which of them could be printed by the fourth println statement?
5. Which of them could be printed by the fifth println statement?
6. Which of them could be printed by the sixth println statement?

Submitting your work for Part I

Submit your ps2_partI.pdf file by taking the following steps:

1. Login to Gradescope by clicking the link in the left-hand navigation bar.

2. Click on the box for CSCI S-111.

3. If you still need to create a PDF file, open your file on Google Drive, choose File->Download->PDF document, and save the PDF file on your machine.

4. Click on the name of the assignment in the list of assignments on Gradescope. You should see a pop-up window labeled Submit Assignment. (If you don’t see it, click the Submit or Resubmit button at the bottom of the page.)

5. Choose the Submit PDF option, and then click the Select PDF button and find the PDF file that you created. Then click the Upload PDF button.

6. You should see a question outline along with thumbnails of the pages from your uploaded PDF. For each question in the outline:

   • Click the title of the question.
   • Click the page(s) on which your work for that question can be found.

   As you do so, click on the magnifying glass icon for each page and doublecheck that the pages that you see contain the work that you want us to grade.

7. Once you have assigned pages to all of the problems in the question outline, click the Submit button in the lower-right corner of the window. You should see a box saying that your submission was successful.

Part II

55-65 points total

Problem 8: Insulin dosage calculator

12 points; pair-optional

Some people with type I diabetes inject insulin before each meal in order to stabilize their blood-sugar level. The amount of insulin that is required depends on several factors. This problem asks you to complete a simple program that allows the user to compute the amount of insulin that they should inject.

Getting started

1. If you haven’t already done so, create a folder named ps2 for your work on this assignment. You can find instructions for doing so here.

2. Download the following file: Insulin.java

   Make sure to put the file in your ps2 folder. If your browser doesn’t allow you to specify where the file should be saved, try right-clicking on the link above and choosing Save as... or Save link as..., which should produce a dialog box that allows you to choose the correct folder for the file.

3. In VS Code, select the File->Open Folder or File->Open menu option, and use the resulting dialog box to find and open the folder that you created in step 1. (Note: You must open the folder; it is not sufficient to simply open the file.)

   The name of the folder should appear in the Explorer pane on the left-hand side of the VS Code window, along with the name of the Insulin.java file that you downloaded in step 2.

4. Click on the name Insulin.java, which will open an editor window for that file. You will see that we’ve given you the beginnings of the program. Make sure to complete the comments at the top of that file.

Completing the program

Start by reading over the starter code that we’ve given you. Make sure that you understand it. You will see that it does the following:

• reads the person’s current blood-sugar level (specified to the nearest integer) from the keyboard and stores it a variable named currentSugar
• reads the person’s target blood-sugar level (also specified to the nearest integer) and stores it in a variable named targetSugar
• reads the person’s carbohydrate equivalency (the number of grams of carbs that are equivalent to one unit of insulin, specified to the nearest number of grams) and stores it in a variable named carbEquiv
• reads the number of carbohydrates that the person plans to consume during the meal (specified to the nearest number of grams) and stores it in a variable named carbConsume
• reads an integer from 0 to 3 indicating the amount of exercise the person plans to perform after the meal (0 = none, 3 = heavy exercise) and stores it in a variable named exercise.

You do not need to understand how the program obtains the values of these variables. You simply need to complete the program so that it uses the values of the variables to compute the correct dosage of insulin, using the following formula:

           currentSugar - targetSugar     carbConsume
dosage  =  --------------------------  +  -----------  -  exercise
                       55                  carbEquiv

For example, assume that a person enters the following values:

• current blood sugar: 210
• target blood sugar: 100
• carbohydrate equivalency: 10
• carbohydrates to consume: 60
• amount of exercise: 2

For this person, the program should perform the following computation:

         (210 - 100)  60
dosage =  --------- + -- - 2
              55      10

       = 110
         --- + 6 - 2
         55

       = 2 + 6 - 2
       = 6

If the dosage is greater than 0, the program should output the result using a message like the following:

You should consume 6.0 units of insulin before the meal.

If the dosage ends up being less than or equal to 0, the program should print the following message instead:

You do not need to consume any insulin before the meal.

Use conditional execution to determine which message to print. See our ChangeAdder4.java program for an example of using this type of construct.

Implementation guidelines:

1. You should not change any of the code that we have given you. Rather, you should simply add your code to the main method, putting it below the code that we have given you.
2. The formula that we have given you uses standard mathematical notation. You will need to use the appropriate Java operators in your code.
3. You may find it helpful to compute the dosage in stages by first computing some of the components of the formula — storing their values in variables that you declare — and then combining those components to compute the final result.
4. Make your computations as precise as possible. This means that you will need to be careful in the types that you select for your variables and in the expressions that you construct for your computations. You may find it helpful to review the notes and example programs from lecture.
5. You may assume that all of the values entered by the user are valid values, and thus you do not need to perform any checking for problematic values.

6. You should not perform any mathematical operations in the context of a println statement. Instead, you should assign the result of a mathematical computation to a variable and then use the variable in the println statement.

   For example, let’s say that you wanted to print the product of the values in the int variables d and e. Instead of doing this:

   System.out.println("The product is: " + (d * e));   // not allowed in this assignment


   you would instead do something like this:

   int product = d * e;
   System.out.println("The product is: " + product);


   Taking this approach will give you practice with declaring your own variables. Using variables in this way can also make your code more readable, provided that you use descriptive names for the variables.

7. We recommend that you test your code frequently, rather than waiting until after the entire program is written. After you add each new piece of functionality, check for compiler errors, perform other testing, and debug as needed before proceeding with the rest of the program.

8. Make sure that the program that you submit compiles, even if it isn’t complete. If it doesn’t compile, we can’t test it, and you will end up losing most if not all of the available points. If there are lines in your program that prevent it from compiling, remove them or turn them into comments by putting two slashes (//) at the start of the each of the problematic lines. If you are unsure about how to get your program to compile, feel free to ask us for help.

9. Test your program on a variety of inputs to make sure that you don’t have any logic errors in your code.

Problem 9: Right triangle calculator

13 points; pair-optional

This problem asks you to complete a simple program that allows the user to compute some information about a right triangle.

Getting started

1. Download the following file: RightTriangle.java

   Make sure to put the file in your ps2 folder. If your browser doesn’t allow you to specify where the file should be saved, try right-clicking on the link above and choosing Save as... or Save link as..., which should produce a dialog box that allows you to choose the correct folder for the file.

2. As needed, open your ps2 folder using the File->Open Folder or File->Open menu option in VS Code.

   The name of the folder should appear in the Explorer pane on the left-hand side of the VS Code window, along with the name of the file that you downloaded in step 1.

3. Click on the name RightTriangle.java, which will open an editor window for that file. You will see that we’ve given you the beginnings of the program.

Completing the program

Start by reading over the starter code that we’ve given you. Make sure that you understand it. You will see that it reads from the user the lengths of the two two legs of a right triangle – measured to the nearest inch – and stores these lengths in the variables a and b.

You should add the code needed to compute and report the following values:

• the length of the hypotenuse as a real number. By the Pythagorean theorem, the hypotenuse c is the square root of the sum of the squares of the legs a and b. When computing the hypotenuse, you should use the built-in Math.sqrt method. For example, to compute the square root of the value in the variable foo, you would write Math.sqrt(foo)

• the area of the triangle in square inches as a real number. The area of a right triangle is half of the product of the legs (i.e., the product of a and b divided by 2).

• the area of the triangle in square feet as a real number. Note that

  square feet = square inches / 144


• the area of the triangle as an integral number of square feet, with the remaining area expressed in square inches as a real number.

For example, here is a sample run of the program, with user inputs of 20 and 17:

Enter the first leg to the nearest inch: 20
Enter the second leg to the nearest inch: 17

The hypotenuse is: 26.248809496813376 inches
The area is:
    170.0 sq in
    1.1805555555555556 sq ft
    1 sq ft and 26.0 sq in

Note: The first two lines above are from the portion of the program that we provided to read values from the user. You should not echo/re-print the user’s inputs.

The implementation guidelines from the previous problem also apply to this one.

Problem 10: Constructing a scaleable drawing

30 points; individual-only

This problem is based closely on a similar problem by Stuart Reges and Marty Stepp.

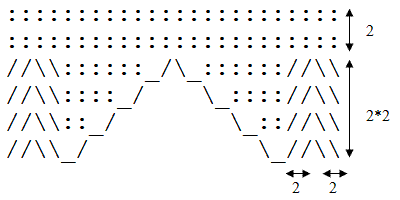

Your task is to write two programs that print the following drawing of an arched opening:

========================
//\\//\\//\\//\\//\\//\\
//\\//\\//\\//\\//\\//\\
========================
::::::::::::::::::::::::
::::::::::::::::::::::::
//\\::::::_/\_:::::://\\
//\\::::_/    \_:::://\\
//\\::_/        \_:://\\
//\\_/            \_//\\
||||                ||||
||||                ||||
||||                ||||
||||                ||||
||||                ||||
||||                ||||
====                ====
||||                ||||
||||                ||||
||||                ||||
||||                ||||
||||                ||||
||||                ||||
========================
////////::::::::\\\\\\\\
///////::::::::::\\\\\\\
========================
//\\//\\//\\//\\//\\//\\
//\\//\\//\\//\\//\\//\\
========================

First version
The first version of your program should reproduce the drawing shown above without using a class constant for a scale factor. This initial version of your program will be similar to the initial DrawTorch program from lecture.

Your program should use for loops (including nested loops where appropriate) to print the drawing. Break the drawing into components – groups of lines that follow the same pattern – and write a separate method for each component. Use pseudocode and tables to figure out the patterns in the output. Test each method before moving on to the next one. The case study from lecture (notes, examples) is a good example of this approach to drawing a complex figure.

In addition, you should follow these guidelines:

1. Put this version of your program in a class called DrawArch. After opening your ps2 folder in VS Code, select File->New Text File, which will open up an empty editor window. Then select File->Save, and give the new file the name DrawArch.java

2. Each print/println statement should print at most two characters. Note that an escape sequence like '\\' only counts as a single character.

3. Make sure that your program exactly reproduces the output shown above. This includes having identical characters and spacing. There should be no blank lines before or after the drawing, and no extra spaces to the left or right of a given line.

   When comparing your output to the expected output, you may find it helpful to consult the text file available here; additional text files for other sizes of the figure are available below. In addition, when you submit your code on Gradescope, one of the preliminary tests will tell you if your code produces the correct output for the default size of the figure.

4. You may find it helpful to use the printChars method from the lecture notes on methods with parameters, although doing so is not required. If you choose to use it, you should copy the method into your class and call it from your other methods. However, to ensure that you get at least some explicit practice with nested loops, at least one of the components of your figure must be printed without using the printChars method. (For example, if we were applying this guideline to our DrawTorch case study, we might use explicit nested loops for the flame, and calls to printChars for the other components of the figure.)

5. Use procedural decomposition – employing static methods to capture the structure of your solution and to eliminate code duplication – as you did in Problem Set 1. Make sure that no substantial groups of repeated statements appear in your code.

6. Employ good programming style. Use appropriate indentation, select descriptive variable names, insert blank lines between logical parts of your program, and add comments as necessary to explain what your code does. In particular, you should have comments at the start of the file and before each method, as you did in Problem Set 1. See the coding conventions for more detail.

Second version
To create the second version of your program, you should modify your first version so that it uses a scale factor, just as we modified DrawTorch to create DrawTorch2.

To begin, make sure that the first version of your program is fully saved. Then use the File->Save As menu option to save a copy of your first version so that you can use it as a starting point for your second version. Give the new file the name DrawArch2.java, and change the name of the class in this file to DrawArch2.

Once you have created the file for your second version, you should add a class constant to represent the scale factor – the integer value that is used to determine the dimensions of the various components of the figure. The figure below shows how a scale factor value of 2 can be used to determine the dimensions of some of the components of the drawing at its original size.

Make whatever changes are needed to fully incorporate the scale factor into your program. On any given execution, your program will produce just one version of the drawing. However, you should refer to the class constant throughout your code, so that by simply changing your constant’s value and recompiling, your program will produce a proportional drawing of a different size. Your program should work for any value of the constant greater than or equal to 1. Here are some examples of what the figure should look like for different values of the constant:

• expected output when the constant is 1
• expected output when the constant is 2 (the default size produced by your first version)
• expected output when the constant is 3

To determine how the scale factor should be incorporated into your existing code, it can be helpful to compare two or more sizes of the figure and to use tables to determine how the various numbers in the for loops depend on the value of the scale factor. See the case study from lecture for examples of this process.

Guidelines 2-6 from the first version also apply to the second version.

Problem 11: Estimating the square root of a number

10 points; individual-only; required of grad-credit students; may be completed by other students for partial extra credit

Java’s Math library includes a method for calculating the square root of a number. If this method weren’t available, how would we compute a square root?

One option is to use the algorithm devised by Newton, which computes a series of estimates that get closer and closer to the actual square root. Newton’s algorithm begins with some initial estimate of the square root, and it repeatedly generates a closer estimate by performing a simple computation. If x is the number whose square root we are calculating and estimate is the current estimate of the square root, Newton’s algorithm uses

as its next estimate. It repeats this computation multiple times, and each time it gets a more accurate estimate of the square root.

Your task is to write a program that uses Newton’s algorithm to estimate the square root of a positive integer.

Getting started

1. Download the following file: RootCompute.java

   Make sure to put the file in your ps2 folder. If your browser doesn’t allow you to specify where the file should be saved, try right-clicking on the link above and choosing Save as... or Save link as..., which should produce a dialog box that allows you to choose the correct folder for the file.

2. As needed, open your ps2 folder using the File->Open Folder or File->Open menu option in VS Code.

   The name of the folder should appear in the Explorer pane on the left-hand side of the VS Code window, along with the name of the file that you downloaded in step 1.

3. Click on the name RootCompute.java, which will open an editor window for that file. You will see that we’ve given you the beginnings of the program.

Completing the program

The starter code that we have given you obtains two values from the user:

1. the integer x whose root the program will compute
2. the number of times n that the estimate should be improved

Here again, you do not need to understand how the program obtains the values of these variables. You simply need to complete the program so that it uses these variables to estimate the square root.

Your code should use x/2 as the original estimate, and it should improve the estimate n times by repeatedly applying the formula above. The program should output all of the estimates that it computes, including the original estimate. Use a for loop to perform the necessary repetitions.

Here is a sample run of the program, with user inputs of 20 and 5:

input a positive integer: 20
number of times to improve the estimate: 5

estimates of the square root of 20:
10.0
6.0
4.666666666666667
4.476190476190476
4.472137791286727
4.472135954999956

Note that we end up with six estimates: the original one (x/2), and the five improvements that the user requested.

The implementation guidelines from problem 8 also apply to this one.

Submitting your work for Part II

You should submit the following files:

• Insulin.java
• RightTriangle.java
• DrawArch.java
• DrawArch2.java
• RootCompute.java (if completed)

Here are the steps:

1. Login to Gradescope by clicking the link in the left-hand navigation bar.

2. Click on the box for CSCI S-111.

3. Click on the name of the assignment in the list of assignments. You should see a pop-up window with a box labeled DRAG & DROP. (If you don’t see it, click the Submit or Resubmit button at the bottom of the page.)

4. Add your file to the box labeled DRAG & DROP. You can either drag and drop the file from its folder into the box, or you can click on the box itself and browse for the file.

5. Click the Upload button.

6. You should see a box saying that your submission was successful. Click the (x) button to close that box.

7. The Autograder will perform some tests on your file. Once it is done, check the results to ensure that the tests were passed. If one or more of the tests did not pass, the name of that test will be in red, and there should be a message describing the failure. Based on those messages, make any necessary changes. Feel free to ask a staff member for help.

   Note: You will not see a complete Autograder score when you submit. That is because additional tests will be run later, after the final deadline for the submission has passed. For such problems, it is important to realize that passing all of the initial tests does not necessarily mean that you will ultimately get full credit on the problem. You should always run your own tests to convince yourself that the logic of your solutions is correct.

8. If needed, use the Resubmit button at the bottom of the page to resubmit your work. Important: Every time that you make a submission, you should submit all of the files for that Gradescope assignment, even if some of them have not changed since your last submission.

9. Near the top of the page, click on the box labeled Code. Then click on the name of each file to view its contents. Check to make sure that you see the code that you want us to grade.

Last updated on June 27, 2025.
